DYS 800MM RC Hexacopter frame/ drone D800-V6 take-off weight 4-10kg with Retractable Landing Gear for larger gimbal and camera

FOB Reference Price:Get Latest Price
US $100-1,000 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
D800-V6
Style:
Radion Control Toy
Radion Control Style:
RC Hobby
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
carton box
Port
yantian
Lead Time :
within 3-5 days after getting confirmation
Product Description

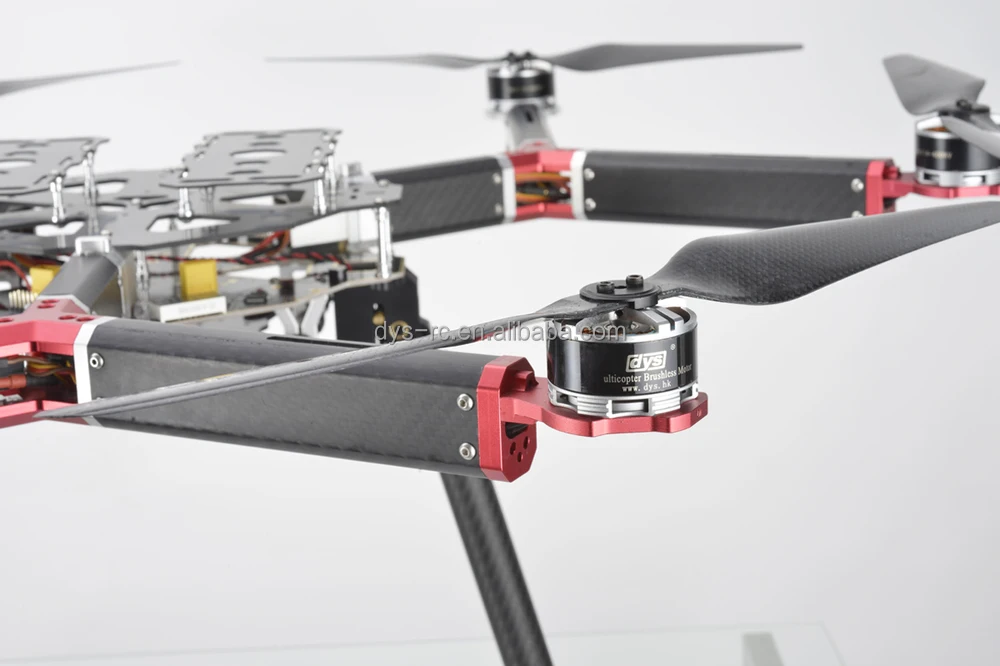

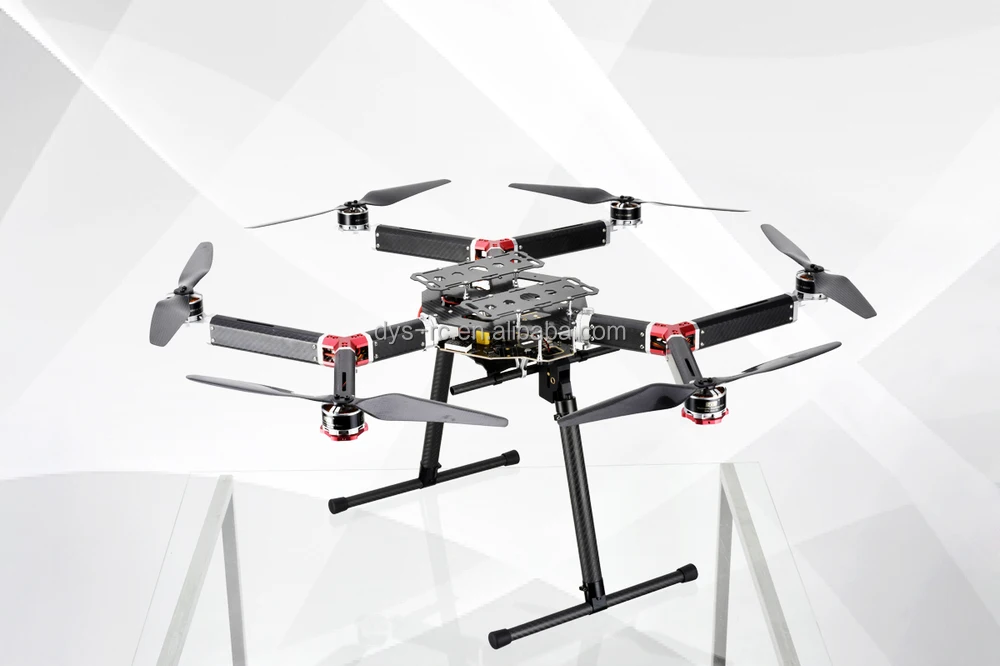

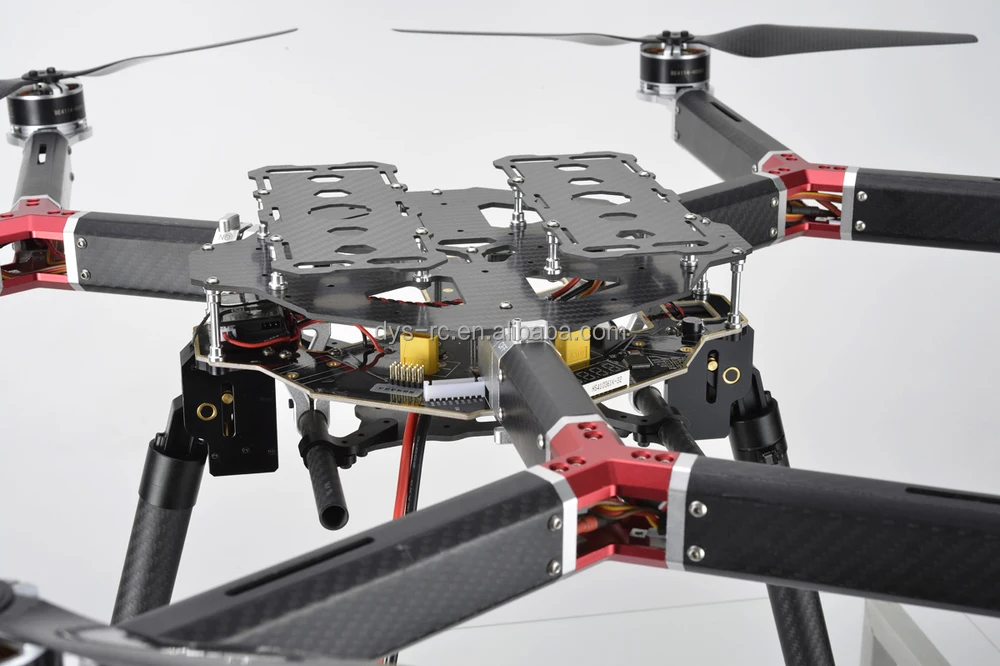

DYS 800MM RC Hexacopter frame/ drone D800-V6 take-off weight 4-10kg with Retractable Landing Gear for larger gimbal and camera

D800-V6 hexacopter frame can be suitable for the heavy lift platform.

The quick disconnect and retractable automatically design enables fast easy assembly and breakdown.

Size and Weight:

Diagonal wheelbase

800mm

Single arm weight(including motors, escs, and propellers)

750g

Center frame size

255mm(Length)x 230mm(Width)x 60mm(Height)

Center frame weight (including retractable landing gear and loading mount)

950g

Landing gear size

310mm(Length)× 430mm(Bottom width)× 320mm(Height)Top width:260 mm

Motor

Stator size

41 × 14mm

KV

400rpm/V

Max Power

500W

ESC

Working Current

40A

Working Voltage

6S LiPo

Compatible with the signal frequency

30Hz ~ 450Hz

Drive PWM frequency

8KHz

Prop(1555CW/1555CCW)

Material

carbon fiber

Size

15×5.5inch

Flight Parameter

Take-off weight

4Kg ~ 10Kg









Total weight

3.4Kg

Battary

LiPo(6S,10000mAh~20000mAh, minimum 15C)

Max power consumption

3000W

Hovering consumption

1500W (@ take-off weight 7Kg)

Hovering time

20min15000mAh (@take-off weight 7Kg)

Operational temperature

-10 °C ~ +40 °C

Recommended Flight Parameters

A2 flight control

Basic Gain

Roll 110%,Pitch 110%,Direction 120%

Attitude Gain

Roll 220%,Pitch 220%,Vertical 120%

WooKong-M flight control

Basic Gain



Roll 160%,Pitch 160%,Direction 160%

Attitude Gain

Roll 190%,Pitch 190%,Vertical 100%
