DYS XM20A V1 version BLHeli Bootloader & Firmware support Oneshot125 ESC without motor wire for high kv power motor

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 30 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
esc
Power:
BATTERY
Material:
Other
Scale:
Other
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
XM20A V1
Style:
Radio Control Toy
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Antistatic bag
Port
Yantian
Lead Time :
3-5days after receiving your confirmation

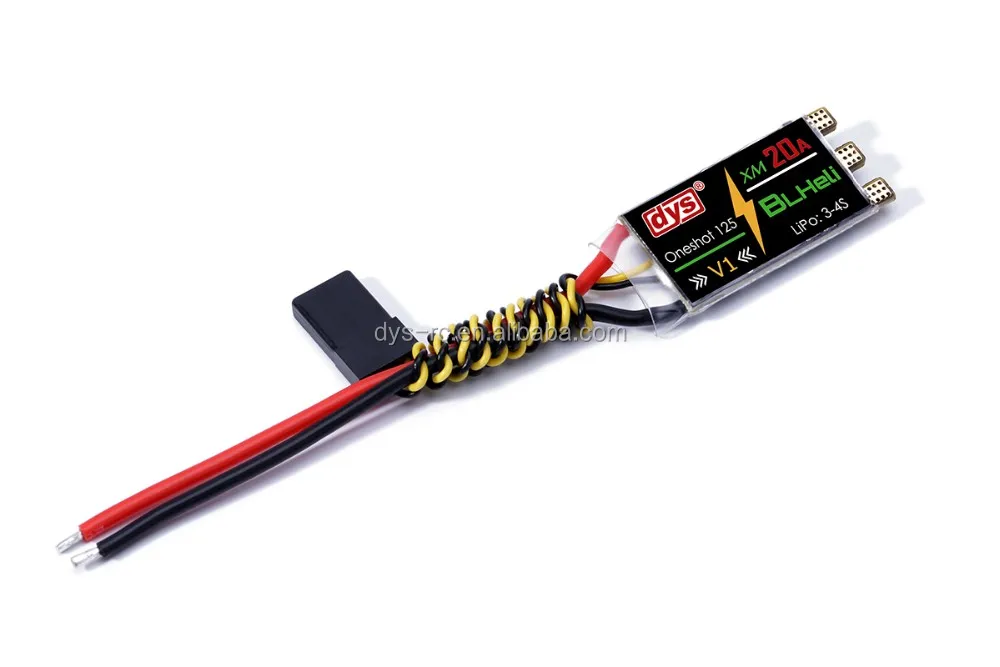

XM20A V1

Model: mini 20A ESC for high KV Power

Specification:
Signal frequency:20-500Hz/ Oneshot125 Ultra high speed
Firmware:BLHeli

Feature:
XM series esc is the upgraded version from SN series with advanced processor, the basic frequency up to 50MHz and processing capacity is faster to support high KV motor.
Specially for Multi-copter, throttle respond fast;
Suit for throttle, which can compatible well with motor;
Throttle signal is twisted pair cable, reduce the signal crosstalk effectively while transmission in the copper wire to flight more stable;
New miniaturization and ultra-low resistance MOSFET, powerful flow resistance, and professional MOS Drive chips to improve efficiency. PCB board processed with special thickness treatment, low resistance and calorific value, higher impact resistance.
Subminiaturization design, 10/20A with high performance filtering capacitor on the board to reduce the weight. Long bar XML20A is designed for the frame with arm tube, suit for the Φ10mm tube to make it more neat.
Support refresh rate of throttle signal maximum up to 500Hz, compatible with all flight controls; Support ultra-high speed Oneshot125 and 3000Hz high refresh rate, fast response, better throttle liner and smooth shooting to be the first choice for multicopter and racing frame.
Throttle lever travel and other settings are available to be set by USB linker; Support two-way mode and 3D mode for racing frame.
