DYS brushless motor SE2205 PRO 2300KV/2550KV FPV Racing motor with 3-5s Lipo and 1070g/1020g pull for FPV racer champions

FOB Reference Price:Get Latest Price
US $1-20 / Pieces | 30 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
motor
Power:
Battery
Material:
Other
Scale:
Other
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
SE2205 PRO
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic box
Port
Yantian
Lead Time :
around 3-5 days after receiving your confirmation

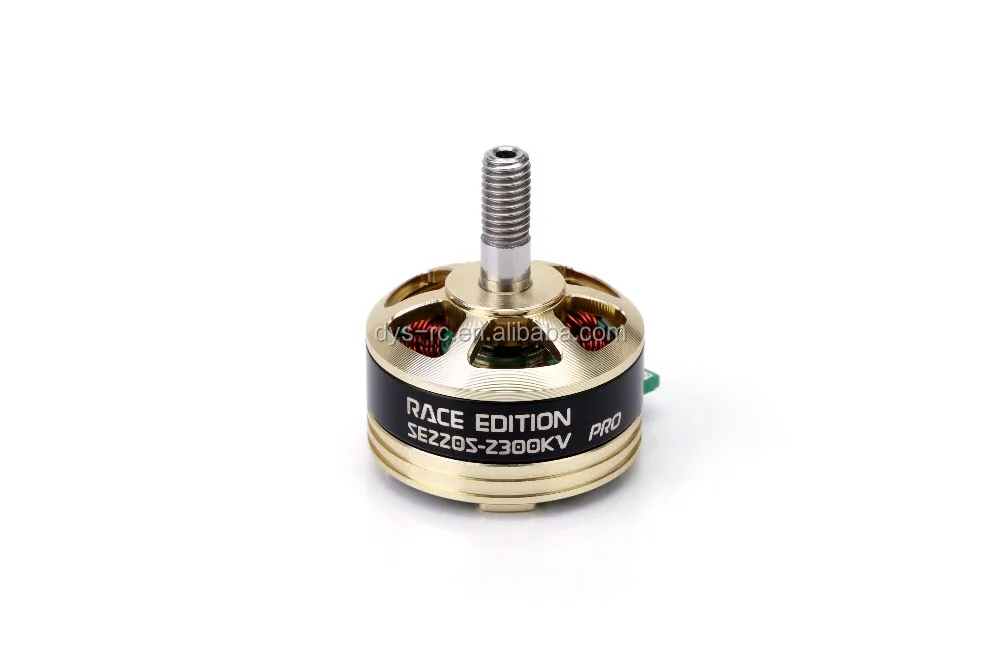

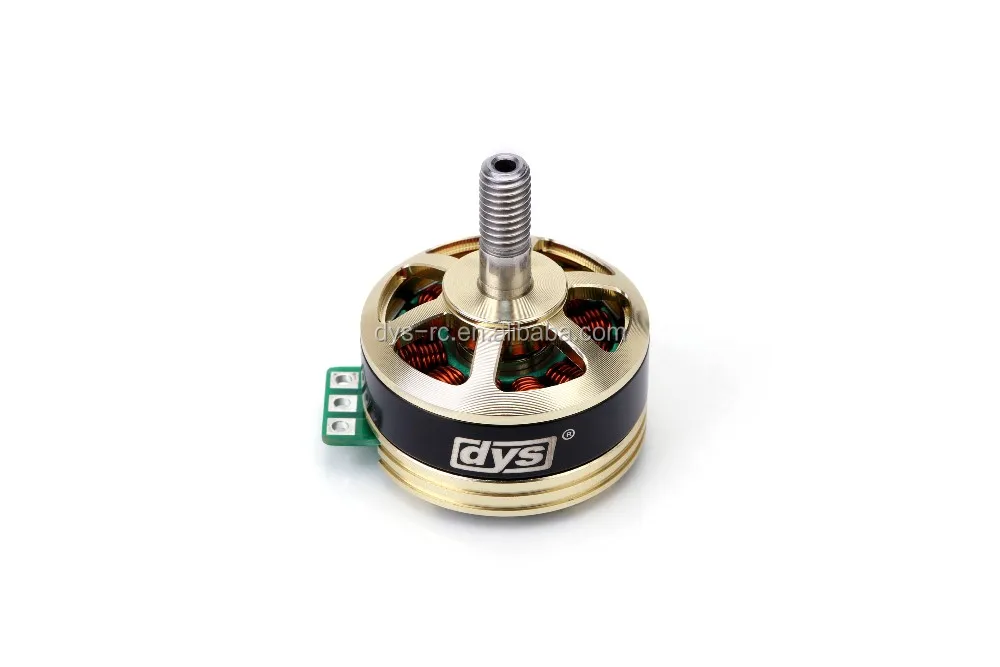

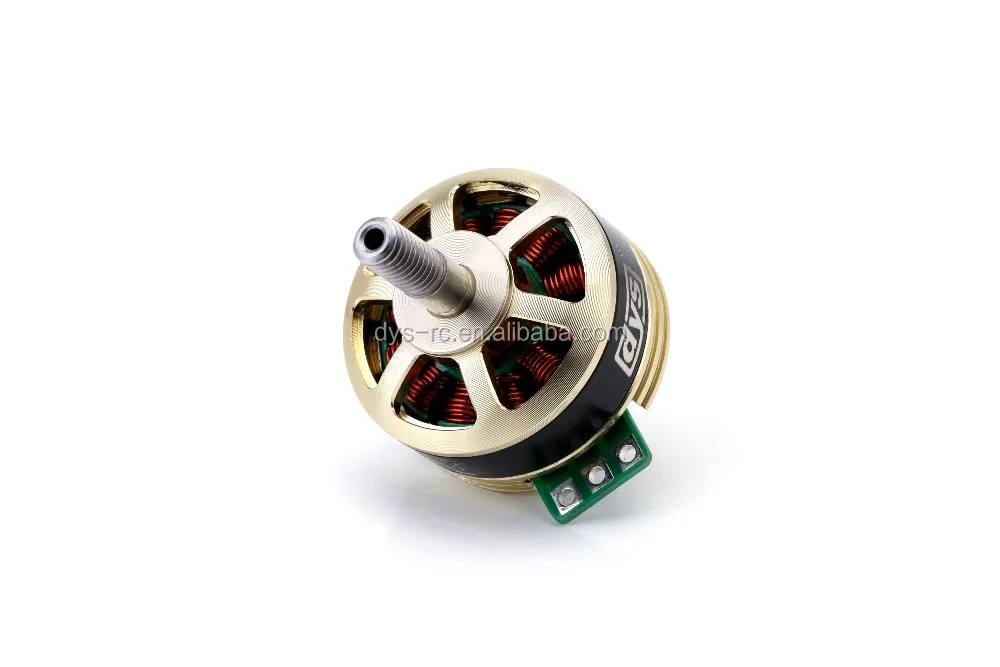

Item name: SE2205 PRO

KV: 2300KV/2550KV

Pull:1070g/1020g

Motor Size:Φ27.7×19

Battery: 3-5S Lipo

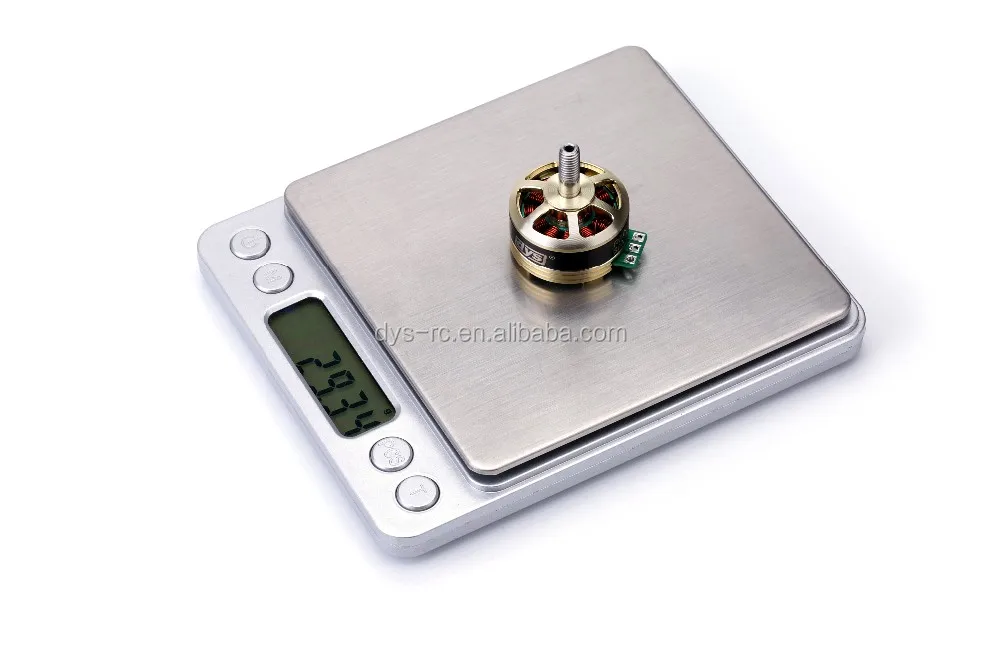

Weight: 29.34g



Features:
*New design with imported NMB bearing
*N52 magnet and 0.2mm lamination
*Powerful with 1.1kg thrust to work with BN5045 Prop
*Hollow shaft with screw to fix the shaft
*Special design for the FPV racer champions.

Specifications:
KV...........................................................................................2300
Configu ration..............................................................................NP
Stator Diameter....................................................................22.0mm
Stator Length.........................................................................5.0mm
Shaft Diameter.......................................................................3.0mm

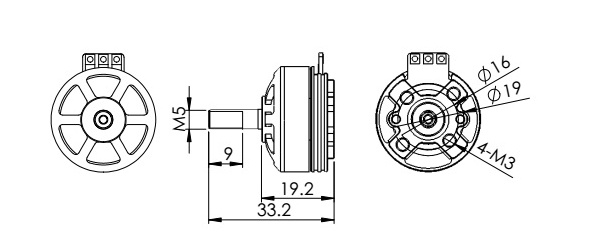

Motor Dimensions(Dia.*Len)........................................Φ27.7×19.0mm
Weight (g).................................................................................30g
No.of Cells(Lipo).......................................................................3-5S
Max Continuous current(A)........................................................26.8A
Max Continuous Power(W)......................................................428.8W
Internal resistance.....................................................................0.06


Specifications:
KV................................................................................................2550
Configu ration...................................................................................NP
Stator Diameter..........................................................................22.0mm
Stator Length...............................................................................5.0mm
Shaft Diameter.............................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................Φ27.7×19.0mm
Weight (g).......................................................................................30g
No.of Cells(Lipo).............................................................................3-5S
Max Continuous current(A)...............................................................27.8A
Max Continuous Power(W).............................................................411.4W
Internal resistance............................................................................0.08
