DYS Powerful high performance (2206) 2600KV FIRE micro brushless motor for FPV racer 180/210/220

FOB Reference Price:Get Latest Price
US $1-18.5 / Pieces | 30 Piece/Pieces FPV motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
fpv
Power:
Battery
Material:
METAL
Scale:
NONE
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
FIRE
Color:
purple
KV:
2100/2300/2600
ESC:
30A
shaft:
M5
Max current:
26.6/30.9/25
Max watt:
425.6/494.4/400w
weight:
32g
prop:
BN4045/BN5045/X50403/X50404
motor size:
27.7x17.7
lipo cells:
3-6s
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month FPV motor
Packaging & Delivery
Packaging Details
plastic box
Port
Yantian
Lead Time :
5-7 days after receiving your confirmation
Video Description

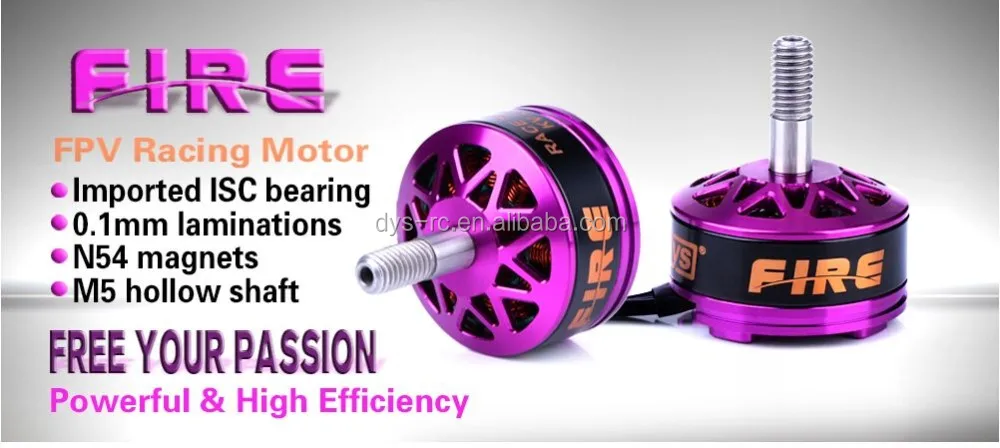

DYS Powerful high performance FIRE motor(2206) 2600KV for FPV racer 180/210/220

fire



How about the spec of the fpv motor



Item name: Fire

KV: 2100KV/2300KV/2600KV

Pull: 1280g/ 1450g/ 1200g

Motor Size:Φ27.7x17.7

Battery: 3-6S Lipo

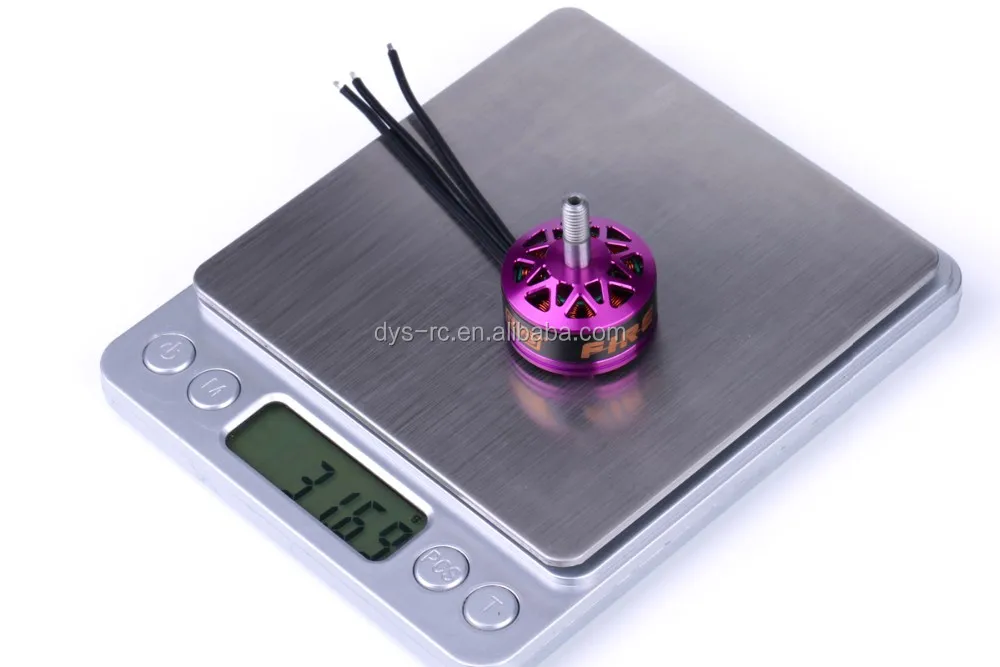

Weight: 32.38g

Imported ISC bearing

0.1mm laminations

N54 magnets



M5 hollow shaft


Specifications:
KV.............................................................................................................2100
Configu ration..............................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length........................................................................................6.0mm
Shaft Diameter......................................................................................3.0mm

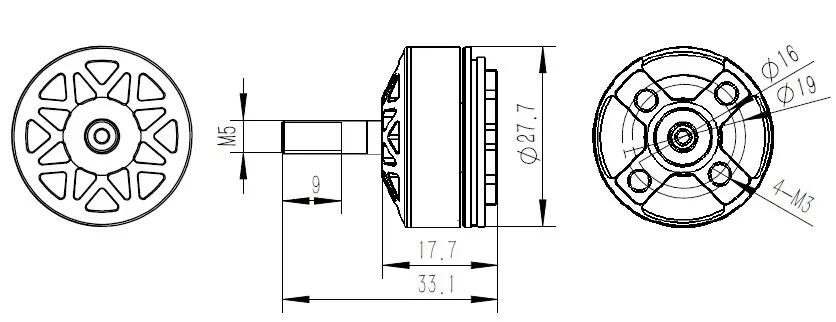

Motor Dimensions(Dia.*Len)....................................................Φ27.7x17.7mm
Weight (g)..................................................................................................32g
No.of Cells(Lipo)......................................................................................3-6S
Max Continuous current(A).....................................................................27.8A
Max Continuous Power(W)...................................................................444.8W
Internal resistance.................................................................................0.07




Specifications:
KV..............................................................................................................2300
Configu ration...............................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length.........................................................................................6.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len).....................................................Φ27.7x17.7mm
Weight (g)..................................................................................................32g
No.of Cells(Lipo)........................................................................................3-6S
Max Continuous current(A)......................................................................31.7A
Max Continuous Power(W)...................................................................507.2W
Internal resistance..................................................................................0.06




Specifications:
KV..............................................................................................................2600
Configu ration...............................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length.........................................................................................6.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len).....................................................Φ27.7x17.7mm
Weight (g).................................................................................................32g
No.of Cells(Lipo).......................................................................................3-6S
Max Continuous current(A).....................................................................34.8A
Max Continuous Power(W)..................................................................556.8W
Internal resistance.................................................................................0.05

201692817725117.jpg2016926185237790.jpg14653

Company Information



Dongyang Innovative Technology Limited is established in 2007. our company has well experienced R&D and high standard professional management team, which specialized in UAV solution,  our core competence products are servo, ESC, motor, propeller, gimbal ,racing frame etc. which are sold all over the world



More details weclome to visit our website: www.dys.hk



FAQ



1.what is your MOQ?

Esc/motor/servo:50pc, FC flight controller: 30pcs , prop 300pair of each item, but accept trial order





2. Can I visit your factory?

Welcome to visit our factory and we will arrange the driver to pick you up.



5. can you accept OEM

   Sure



6. What are your payment terms?

We accept T/T, Paypal before shipping.
