DYS Mars 2400KV 2750KV CW CCW support 3-6s micro electronic drone outrunner brushless DC motor

FOB Reference Price:Get Latest Price
US $1-15.8 / Pieces | 50 Piece/Pieces brushless DC motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
Mars
Color:
Purple
Weight:
34.36g
product name:
dc motor
Size:
28.5x18.7mm
KV:
2400/2750
shaft:
M3
lipo cells:
3-6s
applicable ESC:
30A
max watt:
574.4/646.4
pull:
1400/1550
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month brushless DC motor
Packaging & Delivery
Packaging Details
plastic box
Port
Yantian
Lead Time :
around 3-7 days after receiving the confirmation from you
Video Description
Product Description

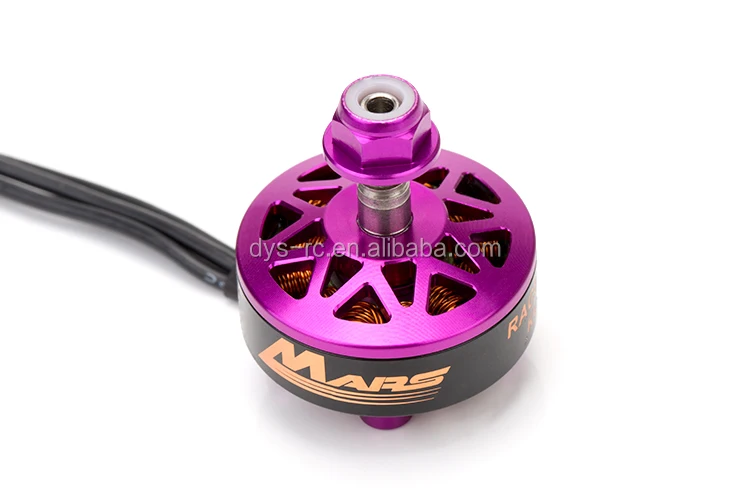

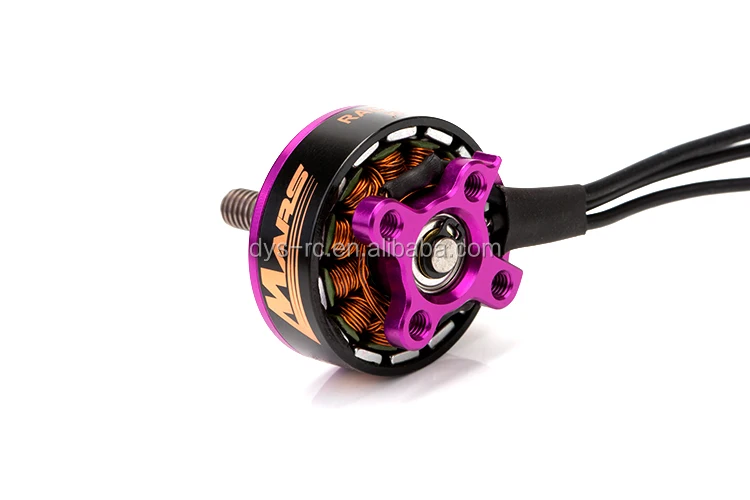

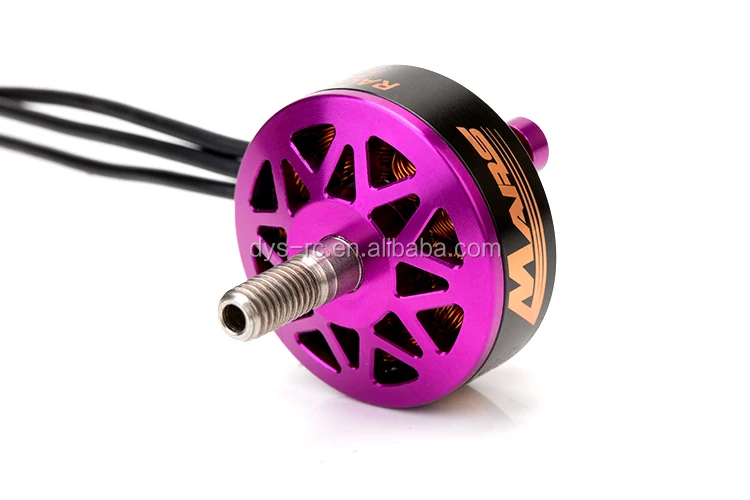

 DYS  Mars 2400KV 2750KV CW CCW  support 3-6s micro electronic  drone outrunner  brushless DC motor



6

How ahout the Spe of brushless micro motor





Item name: Mars

  • KV:2400KV/2750KV
  • Pull:1.40kg / 1.55kg
  • Motor Size: Φ28.5x18.7mm
  • Battery:3-6s

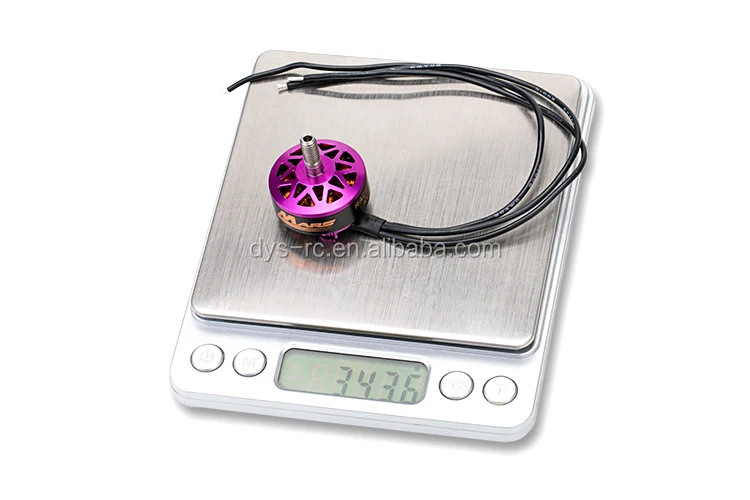

  • Weight:34.36g

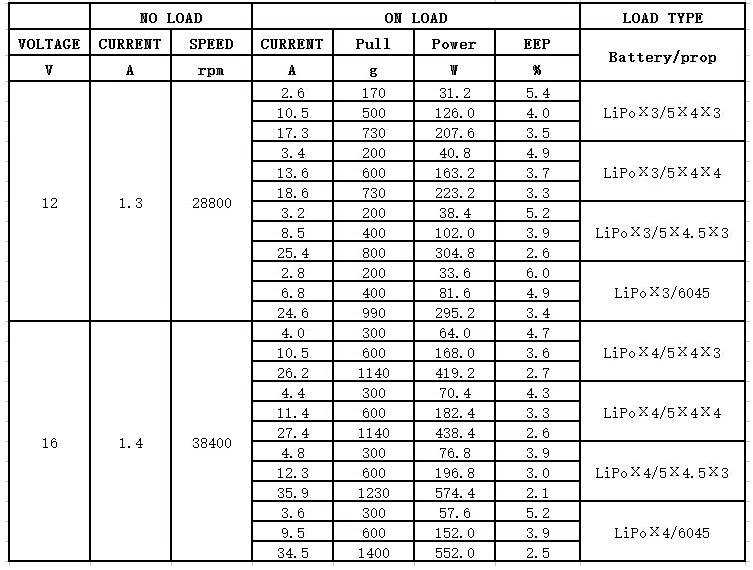

 How  ahout the Technical Data of  brushless DC motor



Specifications:
KV...............................................................................................2400
Configu ration..................................................................................NP
Stator Diameter........................................................................23.0mm
Stator Length.............................................................................6.0mm
Shaft Diameter................................................................................M5

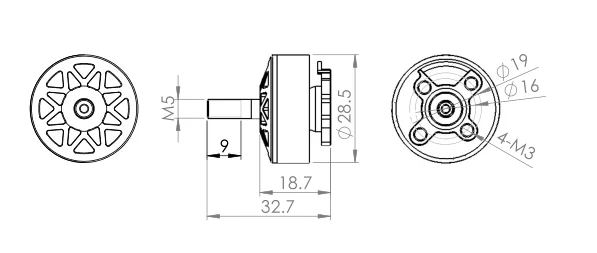

Motor Dimensions(Dia.*Len).............................................Φ28.5x18.7mm
Weight (g)................................................................................34.36g
No.of Cells(Lipo)...........................................................................3-6S
Max Continuous current(A)............................................................34.5A
Max Continuous Power(W)..........................................................574.4W
Internal resistance........................................................................0.04

Specifications:
KV..............................................................................................2750
Configu ration.................................................................................NP
Stator Diameter........................................................................23.0mm
Stator Length............................................................................6.0mm
Shaft Diameter................................................................................M5

Motor Dimensions(Dia.*Len).............................................Φ28.5x18.7mm
Weight (g)................................................................................34.36g
No.of Cells(Lipo)...........................................................................3-6S
Max Continuous current(A)............................................................40.4A
Max Continuous Power(W)..........................................................646.4W
Internal resistance........................................................................0.04

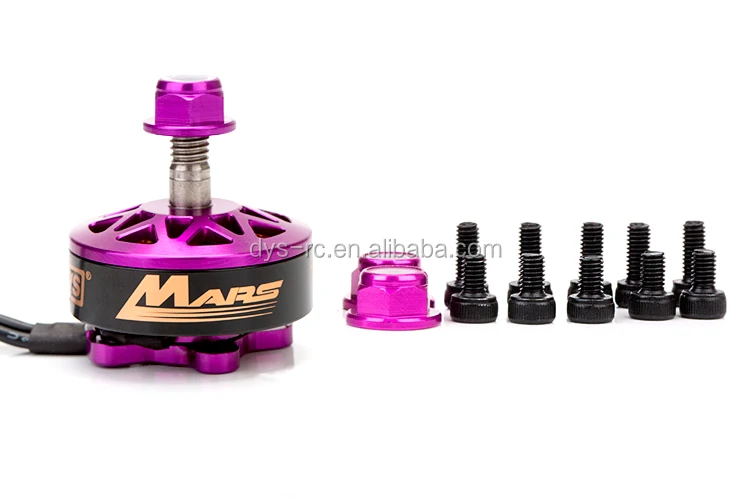

How about the packing of  brushless DC motor



1x Mars Motor
1x Motor Nut
1x bag of screws



How about the certificate

CE test report pic





Company Information



Dongyang Innovative Technology Limited is established in 2007. our company has well experienced R&D and high standard professional management team, which specialized in UAV solution,  our core competence products are servo, ESC, motor, propeller, gimbal ,racing frame etc. which are sold all over the world



More details weclome to visit our website: www.dys.hk





FAQ



1.what is your MOQ?

Esc/motor/servo:50pc, FC flight controller: 30pcs , prop 300pair of each item, but accept trial order





2. Can I visit your factory?

Welcome to visit our factory and we will arrange the driver to pick you up.



5. can you accept OEM

   Sure



6. What are your payment terms?

We accept T/T, Paypal before shipping.
