DYS Storm motor with 2300kv 2550kv brushless motor 2207 size with the "TITANIUM" shaft for quadcopter and FPV racier

FOB Reference Price:Get Latest Price
US $1-20 / Pieces | 30 Piece/Pieces brushless motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
RC drone
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
Storm
KV value:
2300KV/2550KV
Color:
purple
esc:
30A
shart dia:
M5
weight:
33
motor size:
27.7x18.7
lipo cells:
3-6
pull(g):
1350/1450
Max current (A):
29.3/34.1
Max watt:
468/545
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month brushless motor
Packaging & Delivery
Packaging Details
Plastic box
Port
Yantian
Lead Time :
around 3-5 days after receiving your confirmation
Video Description
Product Description

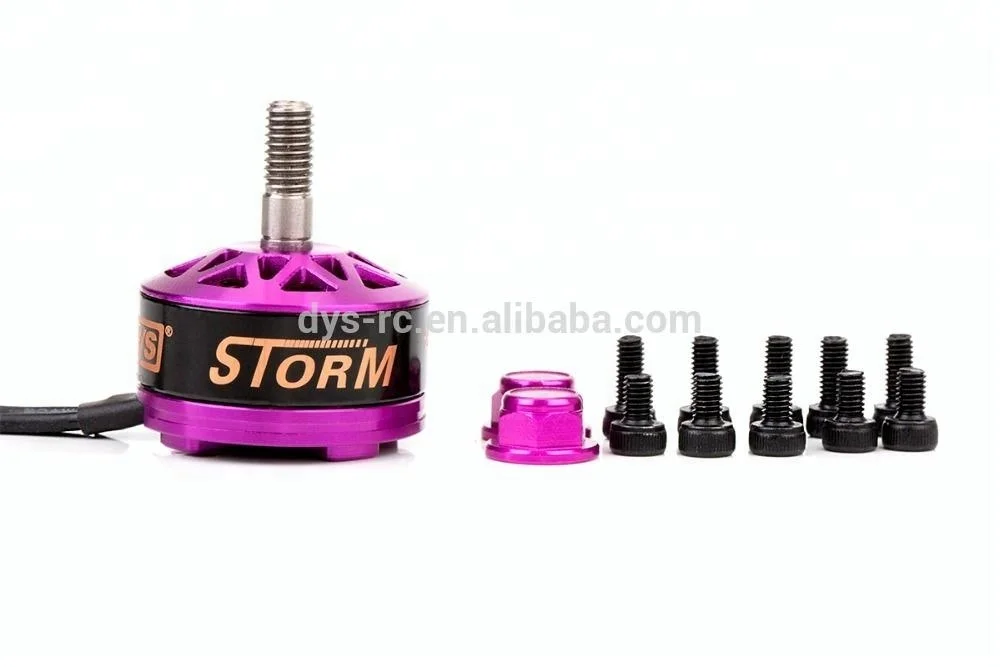

 DYS Storm motor with 2300kv 2550kv brushless motor 2207 size with the "TITANIUM" shaft for quadcopter and FPV racier




How about the spec of brushless motor



Item name: Storm

KV: 2300KV/2550KV

Pull:1.3kg / 1.45kg

Motor Size: Φ27.7x18.7mm

Battery: 3-6S Lipo

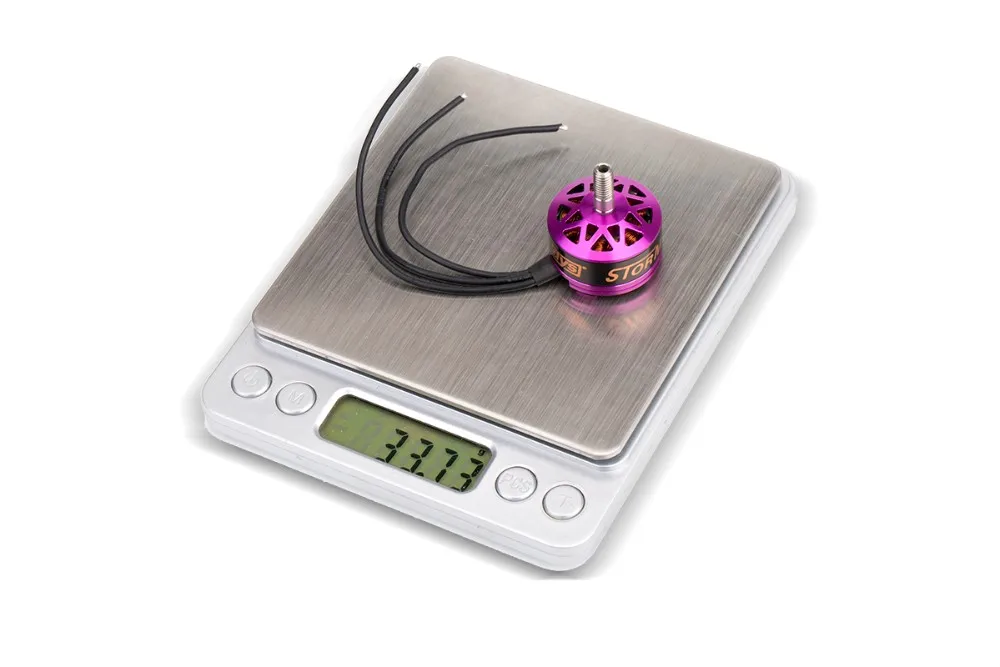

Weight: 33.73g

2017316151559757 (1).jpg

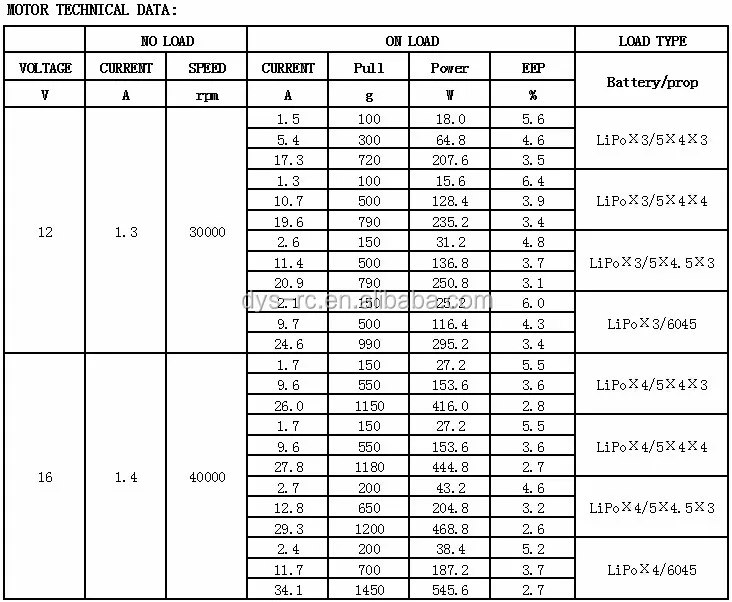

KV.................................................................................................................2300

Configu ration..................................................................................................NP

Stator Diameter......................................................................................22.0mm

Stator Length.............................................................................................7.0mm

Shaft Diameter......................................................................................... 3.0mm

Motor Dimensions(Dia.*Len).....................................................Φ27.7x18.7mm

Weight (g)...................................................................................................33.73g

No.of Cells(Lipo)............................................................................................3-6S

Max Continuous current(A)..........................................................................29.3A

Max Continuous Power(W)......................................................................468.8W

Internal resistance...........................................................................................0.04

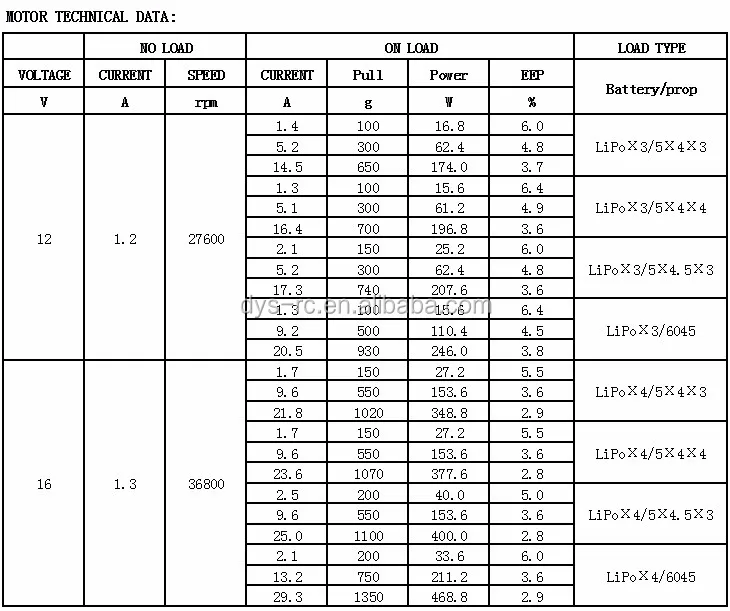

Storm-2300KV



KV..................................................................................................................2500

Configu ration....................................................................................................NP

Stator Diameter........................................................................................22.0mm

Stator Length...............................................................................................7.0mm

Shaft Diameter........................................................................................... 3.0mm

Motor Dimensions(Dia.*Len).......................................................Φ27.7x18.7mm

Weight (g)....................................................................................................33.73g

No.of Cells(Lipo).............................................................................................3-6S

Max Continuous current(A)..........................................................................34.1A

Max Continuous Power(W).......................................................................545.6W

Internal resistance............................................................................................0.06

Storm-2500kv4 - .jpg2 - .jpg6 - .jpg

How about the Certificate

CE test report pic

Packaging & Shipping

 shipping via DHL





Company Information



Dongyang Innovative Technology Limited is established in 2007. our company has well experienced R&D and high standard professional management team, which specialized in UAV solution,  our core competence products are servo, ESC, motor, propeller, gimbal ,racing frame etc. which are sold all over the world



More details weclome to visit our website: www.dys.hk



FAQ



1.what is your MOQ?

Esc/motor/servo:50pc, FC flight controller: 30pcs , prop 300pair of each item, but accept trial order





2. Can I visit your factory?

Welcome to visit our factory and we will arrange the driver to pick you up.



5. can you accept OEM

   Sure



6. What are your payment terms?

We accept T/T, Paypal before shipping.
