DYS Aria Blheli_32Bit 35A ESC 3-6S lipo,Weight 4.37g,Dshot1200,RGB LED,Faster and more powerful

FOB Reference Price:Get Latest Price
US $1-30 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
Aria35A
Style::
Radio Control Toy
Radio Control Style::
RC Hobby
Supply Ability
Supply Ability:
5000 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
antistatic bag
Port
yantian
Lead Time :
within 3-5 days after getting confirmation
Product Description

 DYS 32bit BLHeli_s Firmware ESC Aria35A 4.37g Support 3-6S lipo Dshot1200/300/600 Oneshot Multishot for FPV Racing



Item name: Aria35A

Input voltage: 3-6s Lipo

BEC: NO

Size(mm)L*W*H: 32*16*5mm

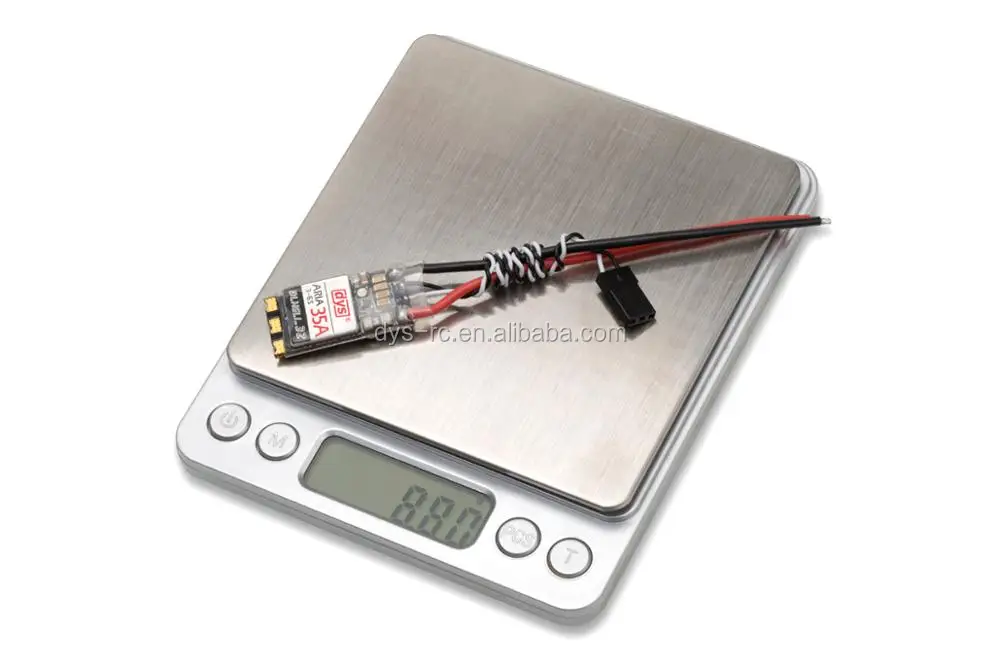

Weight: 4.37g(exclude the wire)

Cont Current(A):35A

Burst Current(A)>10s:40A

Firmware : BLHeli_32

Features:

  1. With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity.

  2. Built-in sensor can be reaction of temperature,output power,output current etc,also programmable for protection.

  3. Support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.

  4. Current Meter to help show current indication of OSD

  5. With USB linker can be programmable throttle setting like support positive and negative,two way mode,FPV 3D mode,motor speed,braking ,PWM frequency, inlet angle speed setting, onboard RGB LED for customize color, Beep etc.

  6. It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125,oneshot 42,Multishot and Dshot 150/300/600/1200.

  7. With special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing and helicopter.

  8. The twisted-pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable.

  9. MCU hardware,Driver circuit ,Mosfet will come with double voltage protection.

  10. To adopt the new process MOSFET of low internal resistance, will help increase resistance to flow. Also,the professional MOS driver chip makes the best efficiency.

  11. Mosfet is covered with aluminum sheet for cooling,which can bring more efficiency and stability.

  12. With special process of 6 layer thicken PCB will lower resistance, small calorific value and bigger impact resistance current.Nice optimize layout of the components and parts makes a smaller size,lighter weight and easy to build.


 CE test report pic



Company Information



Dongyang Innovative Technology Limited is established in 2007. our company has well experienced R&D and high standard professional management team, which specialized in UAV solution,  our core competence products are servo, ESC, motor, propeller, gimbal ,racing frame etc. which are sold all over the world



More details weclome to visit our website: www.dys.hk



FAQ



1.How about the payment?
   TT, Western Union,Paypal are acceptable .





2.What is your MOQ?
    Different items will be different of MOQ, please contact me for details.



3.What can we do for you?
  Competitive prices, the more QTY, the less pricing
  OEM & ODM available



4.How about the delivery way?
Delivery can by express(DHL,UPS,EMS,)
