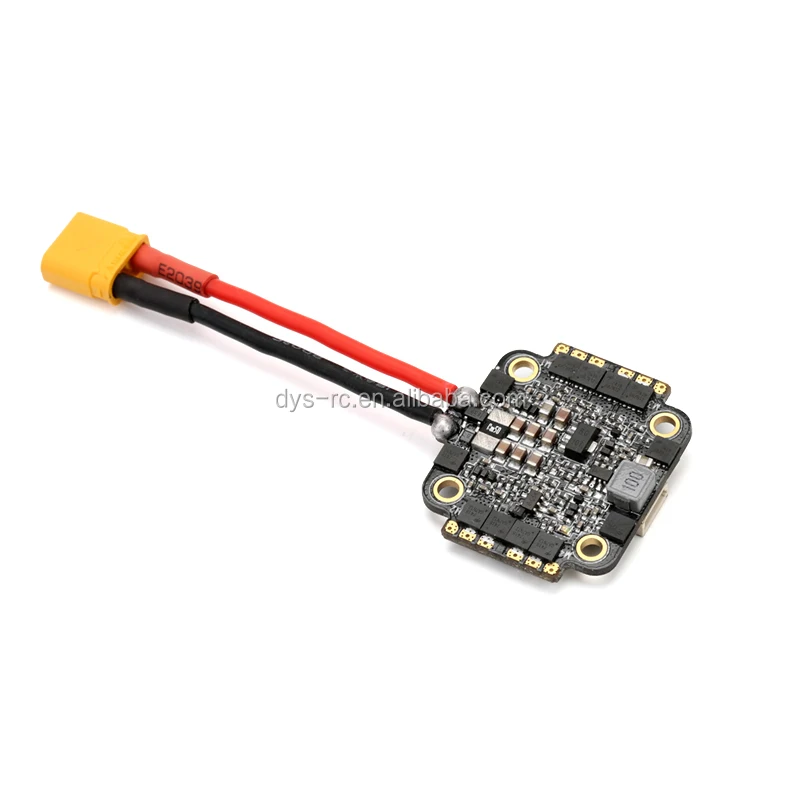

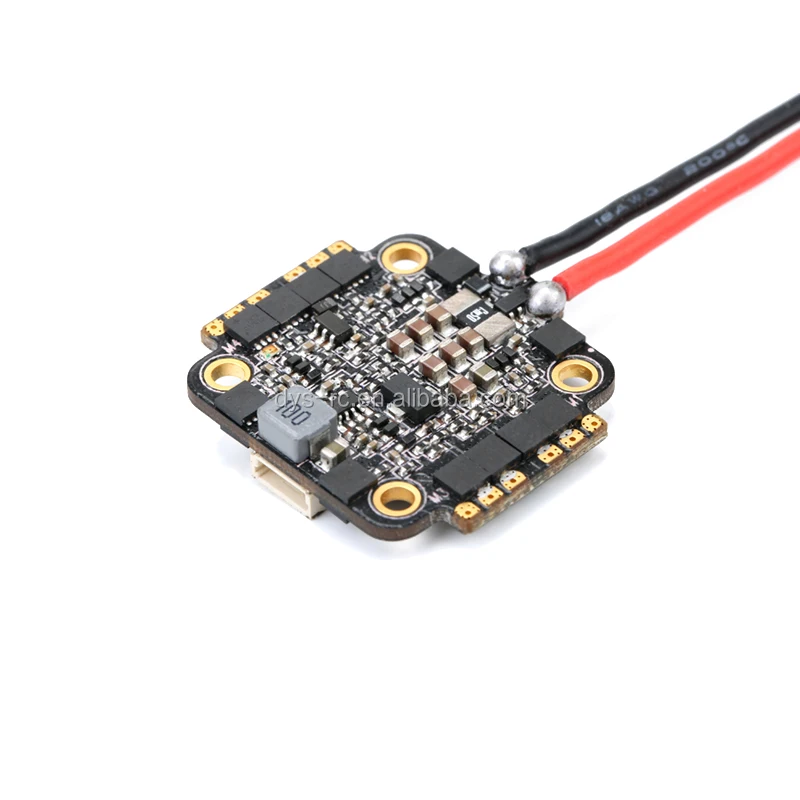

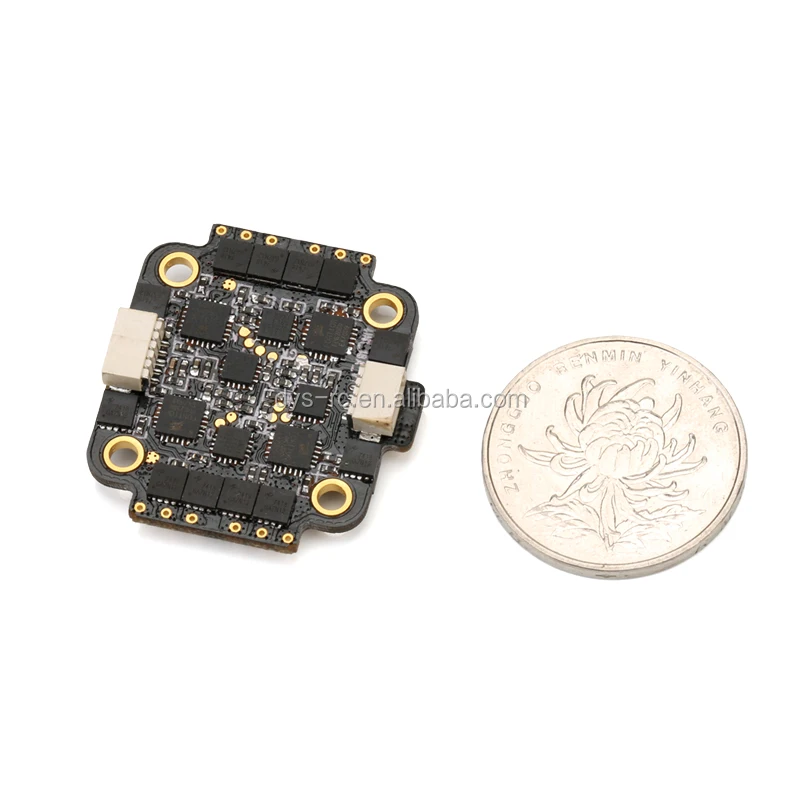

DYS Mini 4 IN 1 Blheli_S Dshot ESC F18A with BEC 5V/2A,12V/1A support 2-4S Mounting size 20*20

FOB Reference Price:Get Latest Price
  • >=50 Sets
    US $40.00
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
Other
Power:
Battery
Material:
Other
Scale:
Other
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
F18A
Product name:
F18A
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic box
Port
huizhou
Lead Time :
around 7 days

Manual of 4-In-1 BLHeli_S ESC F18A

Thanks for purchasing the DYS Electronic Speed Controller(ESC). The brushless system with high power for RC model can be very dangerous, so we strongly suggest you read this manual carefully. Any claims from the operating, failure or malfunctioning etc. will be denied. We assume no liability for personal injury, property damage or consequential damages resulting from our product or our workmanship. As far as is legally permitted, the obligation to compensation is limited to the invoice amount of the affected product. At the same time, we do not assume any liability arising from modifications due to unauthorized product. We reserve the right to change without notice about product design, appearance, performance and operational requirements.

Product Spec:

Firmware: BLHeli_S

Item No

Continue Current

Burst Current

BEC

Lipo

Weight

Size

4IN1-18A

18A

22A

5V/2A

2-4S

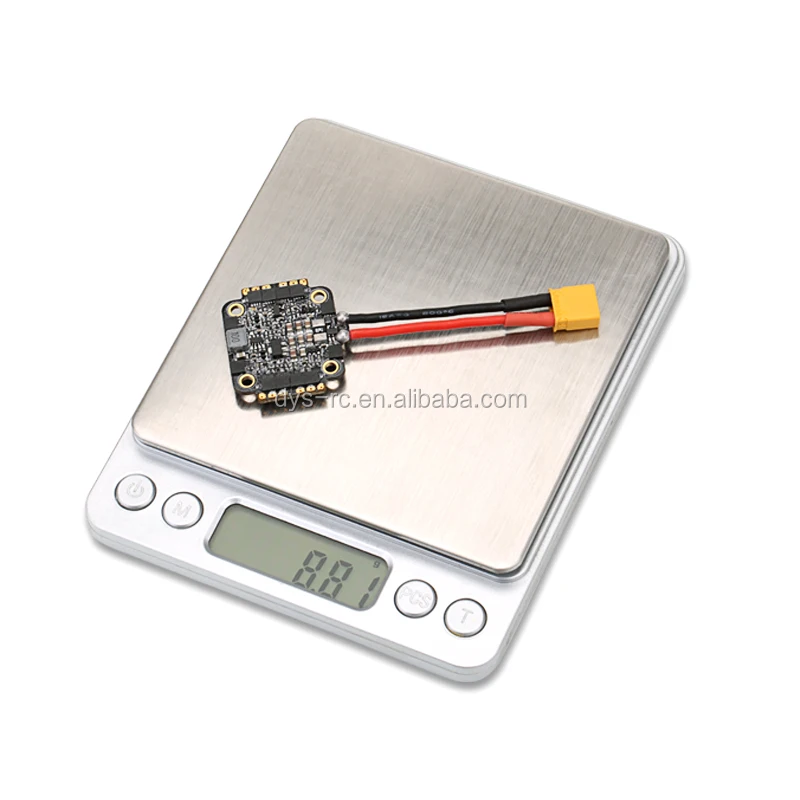

6G

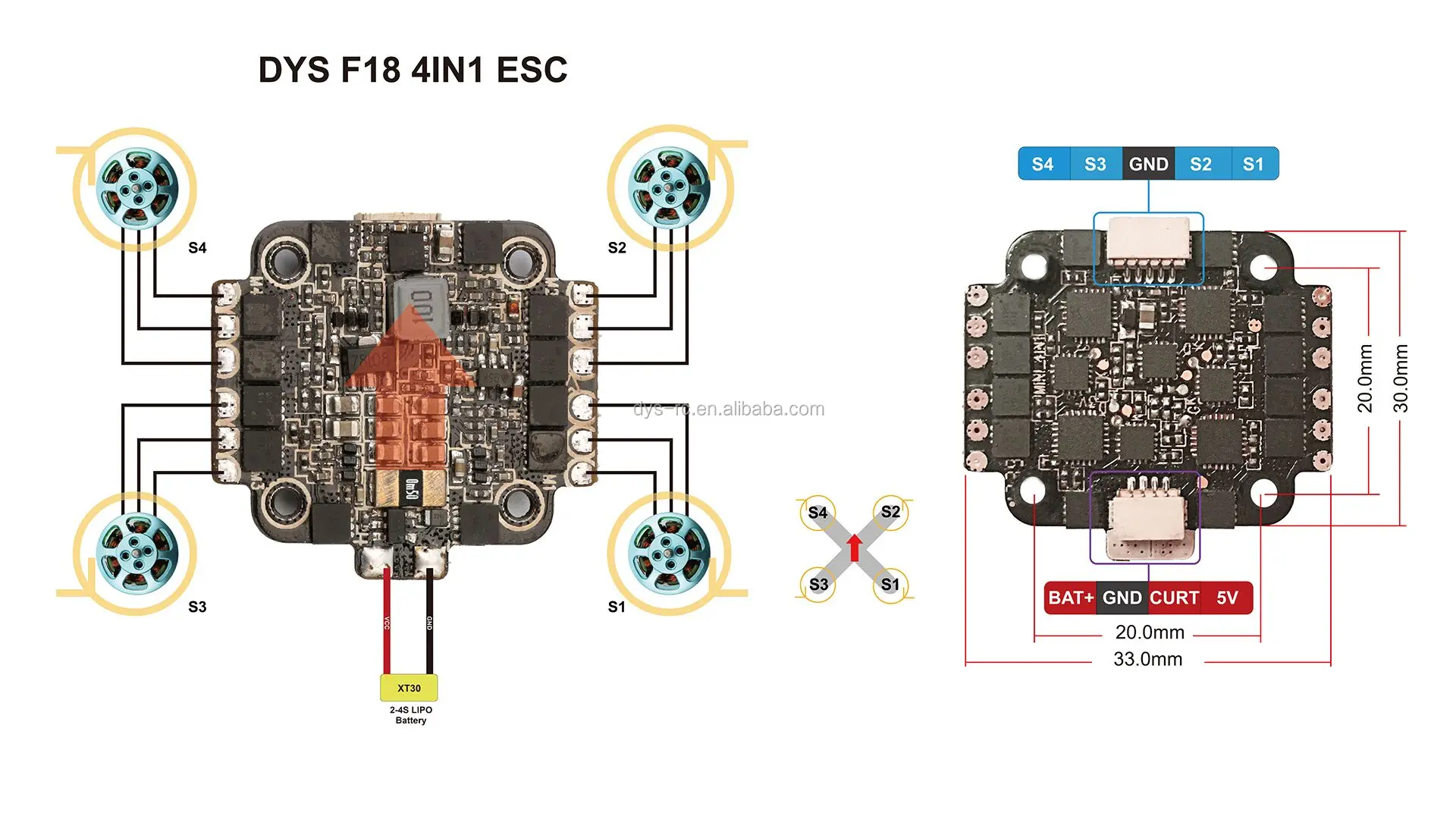

33*30*7.5mm

(hole distance:20X20mm)







Product Feature:

4 in 1 Micro Speed Control ESC is using the main control chip EMF8BB21F16G with great functional and high-performance, and special workmen ship of 8bit C8051 core, the max working frequency will be 50 MHz.

Built-in automatic protection of temperature sensor.

Support BLheli_S firmware, can easily upgrade the firmware or parameter online, also support all functions of BLheli_S.

It can be programmed to set up the throttle etc. It also support two-way mode and FPV 3D mode.

Support the newest protocol of Dshot150/300/600, also compatible PWM, Oneshot125, Oneshot142 and Multishot throttle signal mode

With special optimize in multi-axis, the motor can launch smoother in a good throttle curve and highly support the fixed-wing and helicopter.

The throttle signal line is double stranded wire, which can reduce the crosstalk effectively caused by the signal transmission in the copper wire, making the flight more stable

To adopt the new process MOSFET of low internal resistance, will help increase resistance to flow. Also, the professional MOS drive chip makes the best efficiency.

With special process-thicken PCB have lower resistance, small calorific value and bigger impact resistance current. Nice optimize layout if the components and parts makes a smaller size, lighter weight and easy to build.

.jpg
