DYS Samguk series Wei2207 KV2300 KV2600 30A ESC FPV Racer outrunner micro drone rc brushless motor

FOB Reference Price:Get Latest Price
US $1-7.35 / Pieces | 50 Piece/Pieces brushless motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DYS
Model Number:
Wei 2207
color:
blue
KV:
2300/2600
Properller:
XT40453/XT50403/XT50453
Product Name:
brushless motor
weight:
35g
Max watt:
579/704
Max current:
36.2/44
shaft:
M5
ESC:
30A
Battery lipo cells:
3-6s
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month brushless motor
Packaging & Delivery
Packaging Details
standard export carton
Port
Yantian
Lead Time :
roungly 3-7days after receiving your confirmation

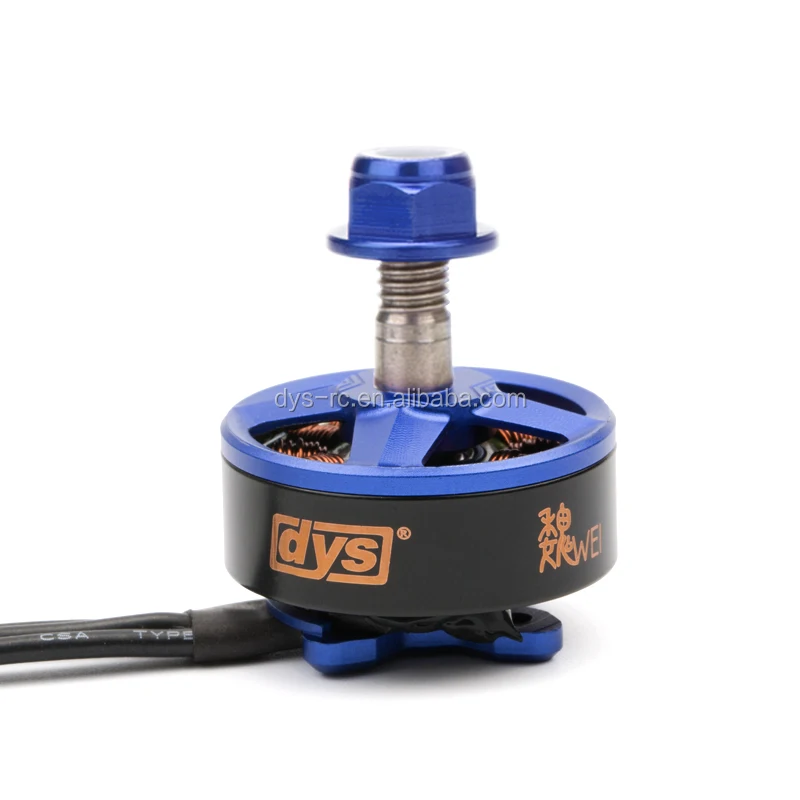

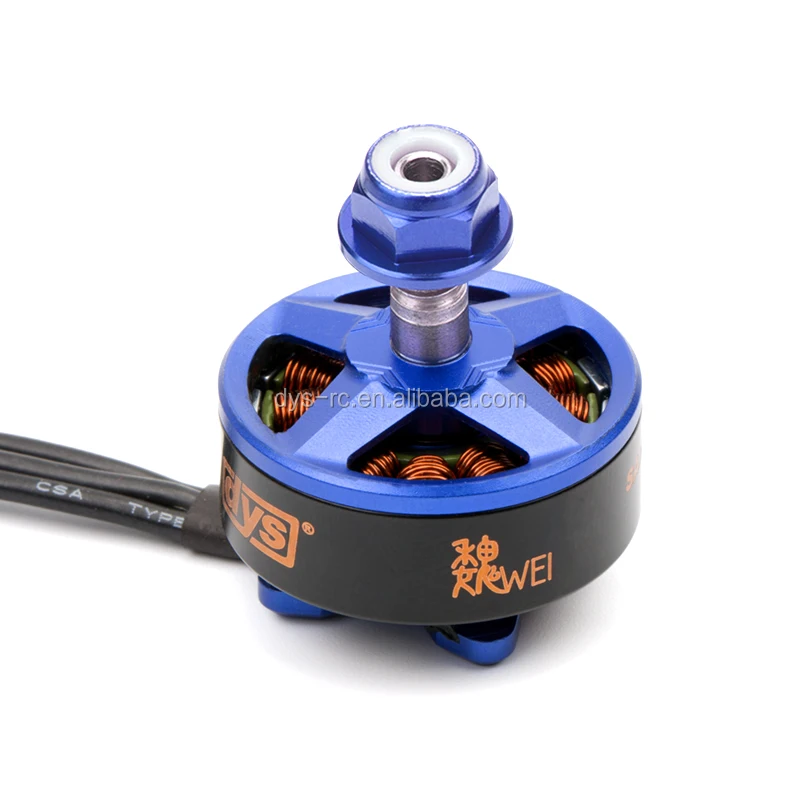

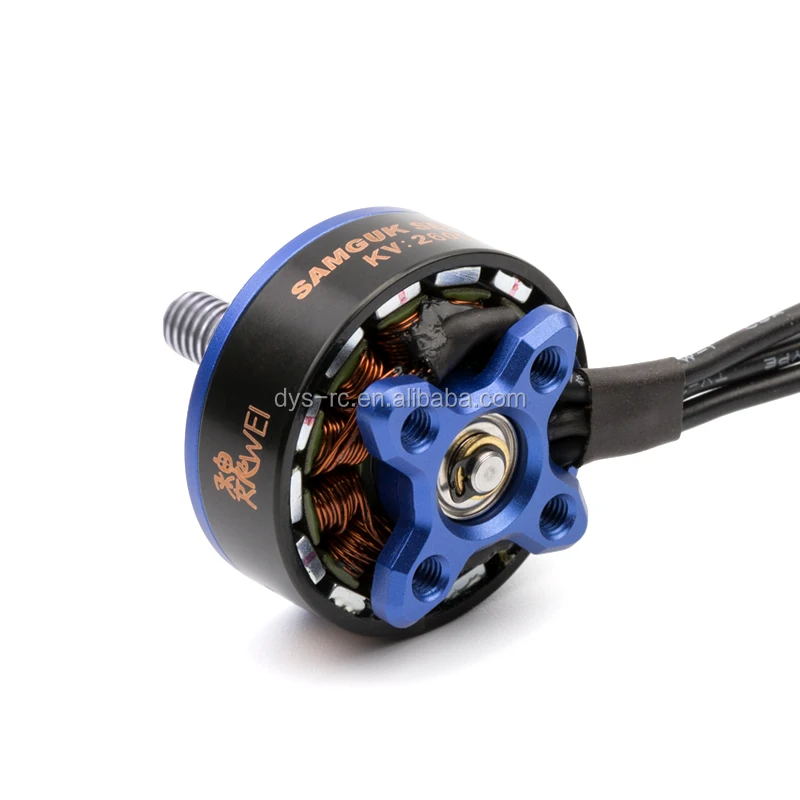

DYS Samguk series Wei2207 KV2300 KV2600 30A ESC FPV Racer outrunner micro drone  rc  brushless motor



 WEI



How ahout the Spe of brushless  motor



Item name: Wei 2207
KV: 2300KV/2600KV(optional)
Version: CW Screw Thread
Lipo Battery: 3-6
Shaft: M5

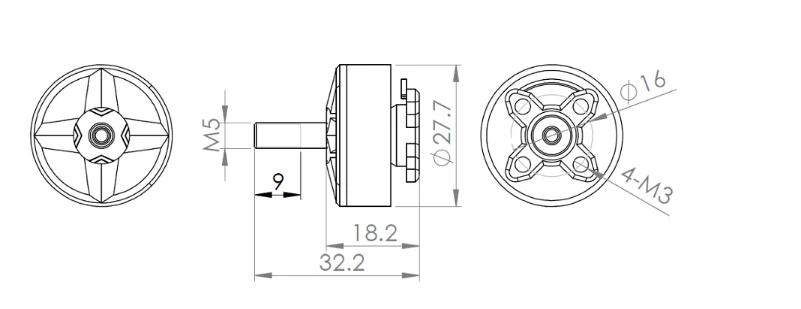

Motor Size: 28.5x 17.00

Propeller: XT40453/XT50403/XT50453





How about the Feature of brushless  motor



>Unique design with Chinese element

>Strong and durable hollow shaft

>Safe and reliable lock shaft with clip

>16*16mm mounting hole



How about the Samguk Story



Samkug Series is a concept from Chinese history culture. There are 3 strong countries, Wei , Shu and Wu. They restrict each other and Chinese are influenced by their hero stories.





010203040506

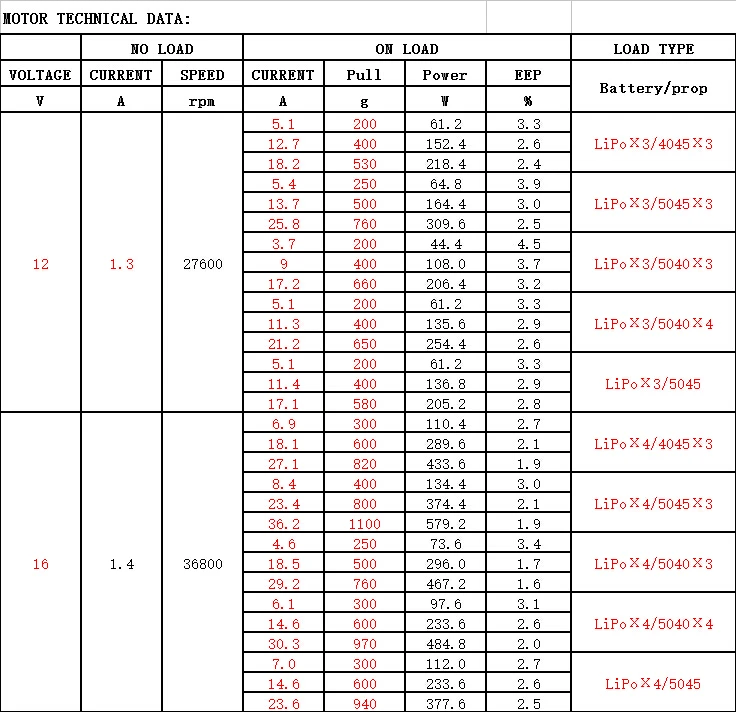

How  ahout the Technical Data of brushless  motor



Specification:

KV......................................................................................................................2300KV

Configu ration.........................................................................................................NP

Stator Diameter..............................................................................................22.0mm

Stator Length.....................................................................................................7.0mm

Motor Dimensions(Dia.*Len)...........................................................Φ27.7×18.2mm

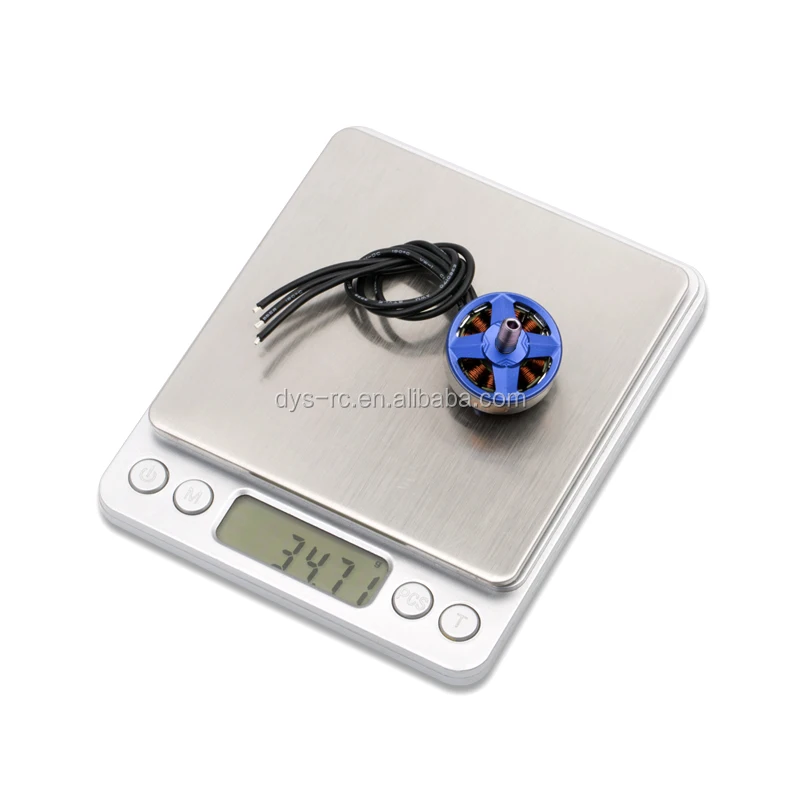

Weight (g)...........................................................................................................34.71g

No.of Cells(Lipo)....................................................................................................3-4S

Max Continuous current(A).............................................................................36.20A

Max Continuous Power(W).............................................................................579.2W

Internal resistance..................................................................................................0.06



wei2300

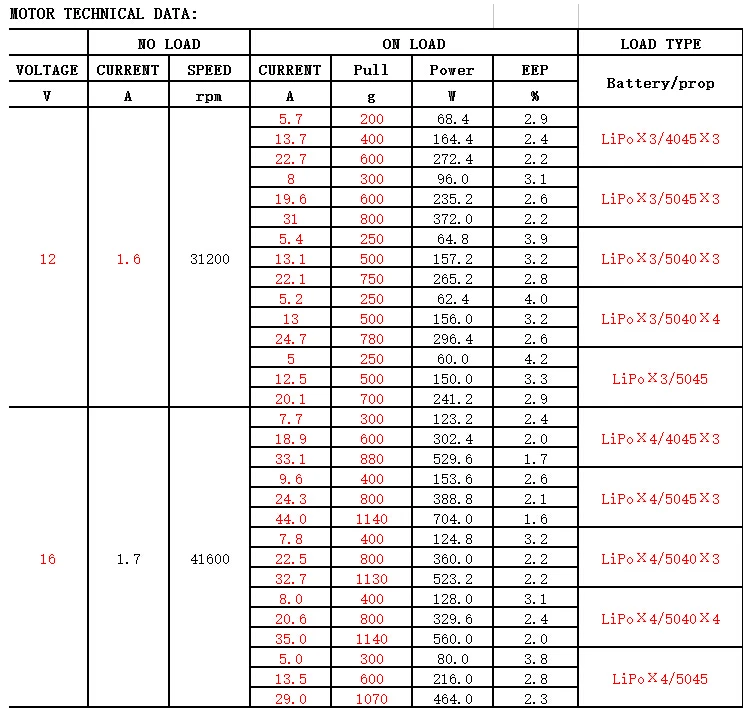

KV......................................................................................................................2600KV

Configu ration.........................................................................................................NP

Stator Diameter..............................................................................................22.0mm

Stator Length.....................................................................................................7.0mm

Motor Dimensions(Dia.*Len)...........................................................Φ27.7×18.2mm

Weight (g)...........................................................................................................34.71g

No.of Cells(Lipo)....................................................................................................3-4S

Max Continuous current(A).............................................................................44.0A

Max Continuous Power(W).............................................................................704.0W

Internal resistance..................................................................................................0.05

wei2600

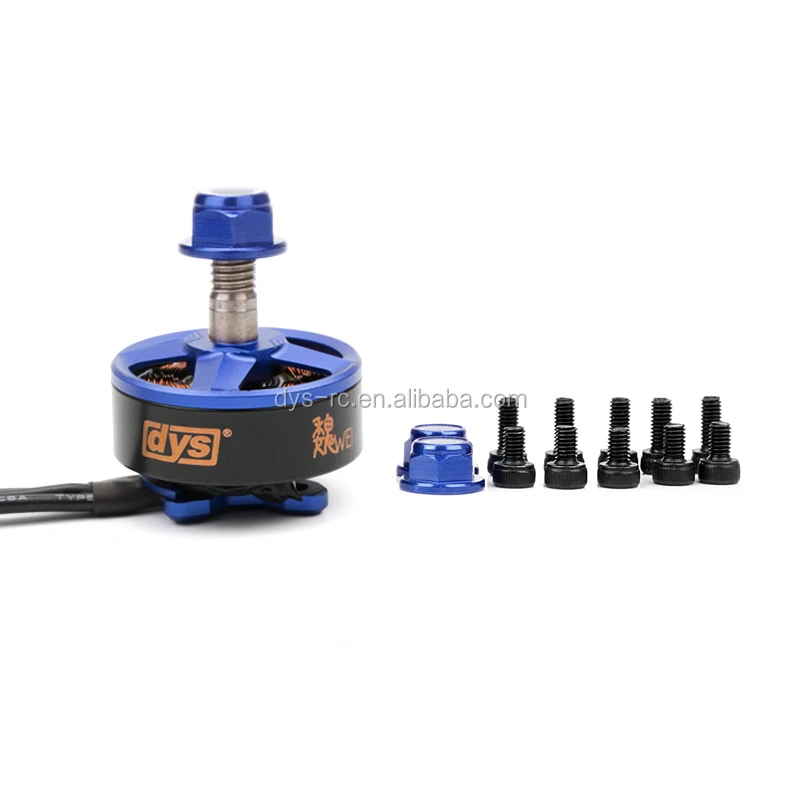

How about the packing of brushless  motor



1x DYS Wei 2306 Motor
1x Motor Nut
1x bag of screws



How about the Certificate

CE test report pic



Company Profile



Dongyang Innovative Technology Limited is established in 2007. our company has well experienced R&D and high standard professional management team, which specialized in UAV solution,  our core competence products are servo, ESC, motor, propeller, gimbal ,racing frame etc. which are sold all over the world



More details weclome to visit our website: www.dys.hk
