DYS BLHeli_32 firmware support Dshot1200/600/300 70A dc esc electronic speed controller

FOB Reference Price:Get Latest Price
$1.00 - $21.99 / Pieces | 30 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Aria 70A
product name:
Aria 70A
cont current:
lipo cells:
Dshot 1200/600/300,onshot,multishot
BL Heli 32
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month speed controller
Packaging & Delivery
Packaging Details
shrink on the board then in a plastic bag
Product Description

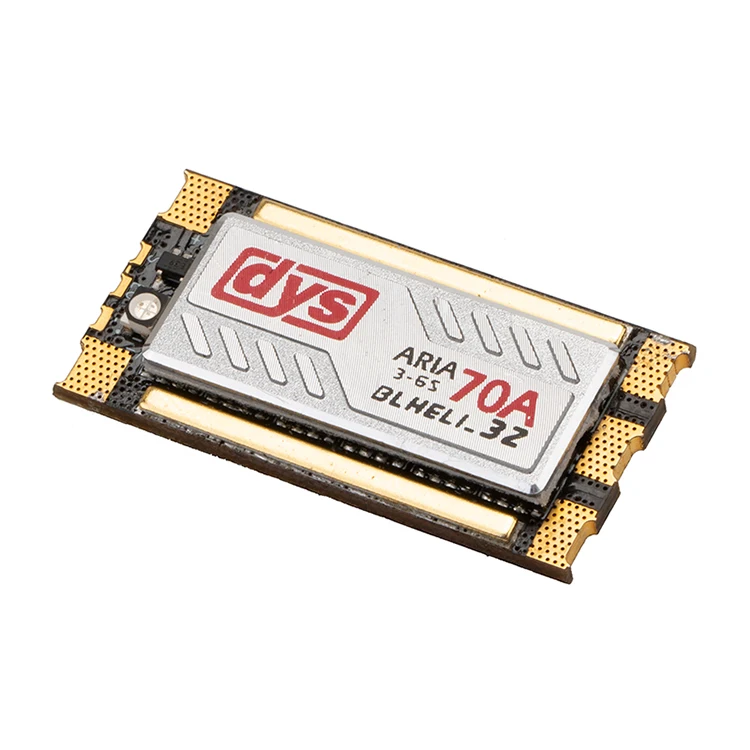

DYS BLHeli_32 firmware support Dshot1200/600/300  70A dc  esc electronic speed controller

How about the specification of ESC 70A
Item name: Ari70A
Input voltage: 3-6s Lipo
Size(mm)L*W*H: 21*28.16*6mm

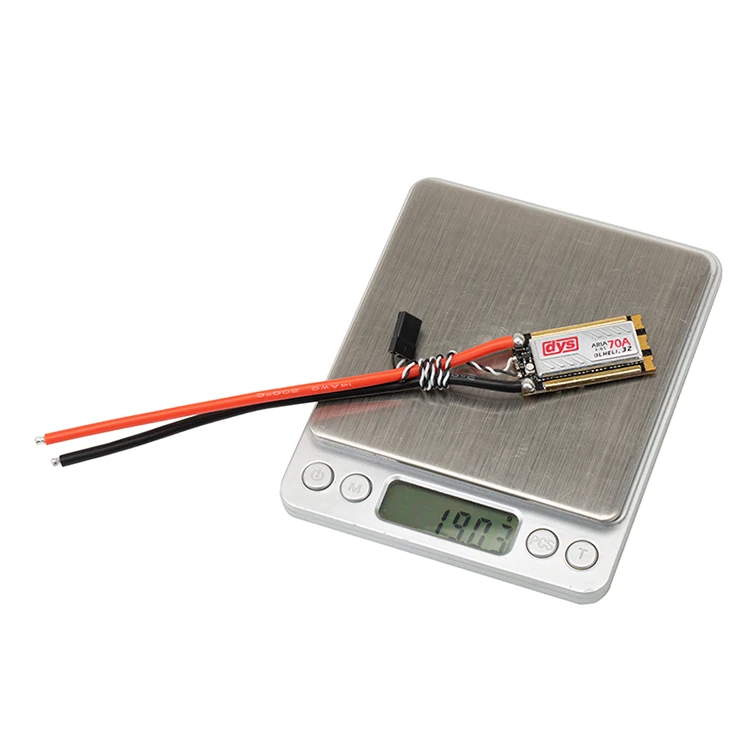

Weight: 860G
Cont Current(A):70A
Burst Current(A)>10s: 80A
Firmware : BLHeli_32
How about the Features of speed controller
With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity.
Built-in sensor can be reaction of temperature,output power,output current etc,also programmable for protection.
Support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.
Current Meter to help show current indication of OSD
With USB linker can be programmable throttle setting like support positive and negative,two way mode,FPV 3D mode,motor speed,braking ,PWM frequency, inlet angle speed setting, onboard RGB LED for customize color, Beep etc.
It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125,oneshot 42,Multishot and Dshot 150/300/600/1200.
With special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing and helicopter.
The twisted-pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable.
MCU hardware,Driver circuit ,Mosfet will come with double voltage protection.
To adopt the new process MOSFET of low internal resistance, will help increase resistance to flow. Also,the professional MOS driver chip makes the best efficiency.
Mosfet is covered with aluminum sheet for cooling,which can bring more efficiency and stability.

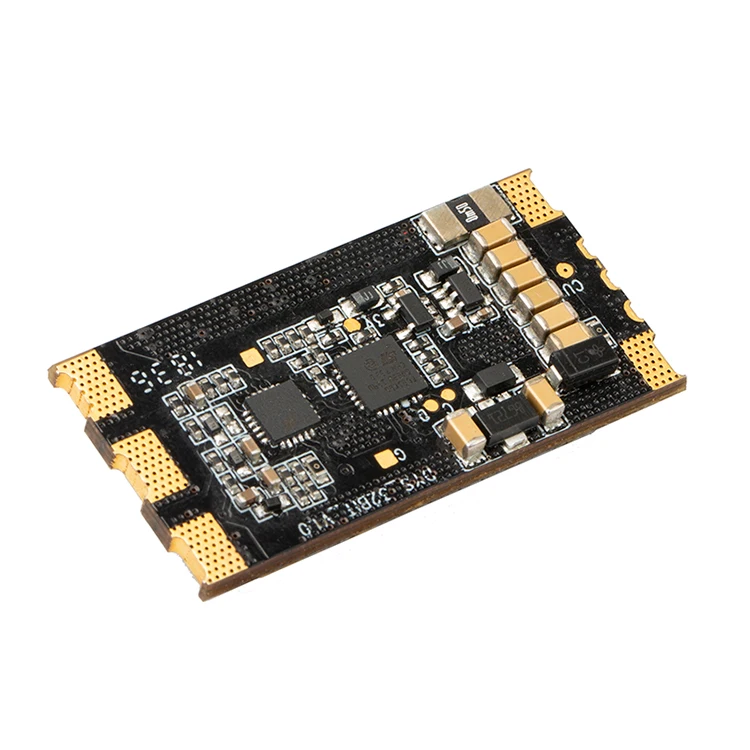

With special process of 8 layer thicken PCB will lower resistance, small calorific value and bigger impact resistance current.Nice optimize layout of the components and parts makes a smaller size,lighter weight and easy to build.
How about the certificate
Packaging & Shipping

 packed in plastic box , ship via DHL
