Quick Details

  • Style: Radio Control Toy
  • Radio Control Style: RC Hobby
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: DYS
  • Model Number: D800-X8

Packaging & Delivery

Packaging Details box
Delivery Time 5-7 days for 20 sets

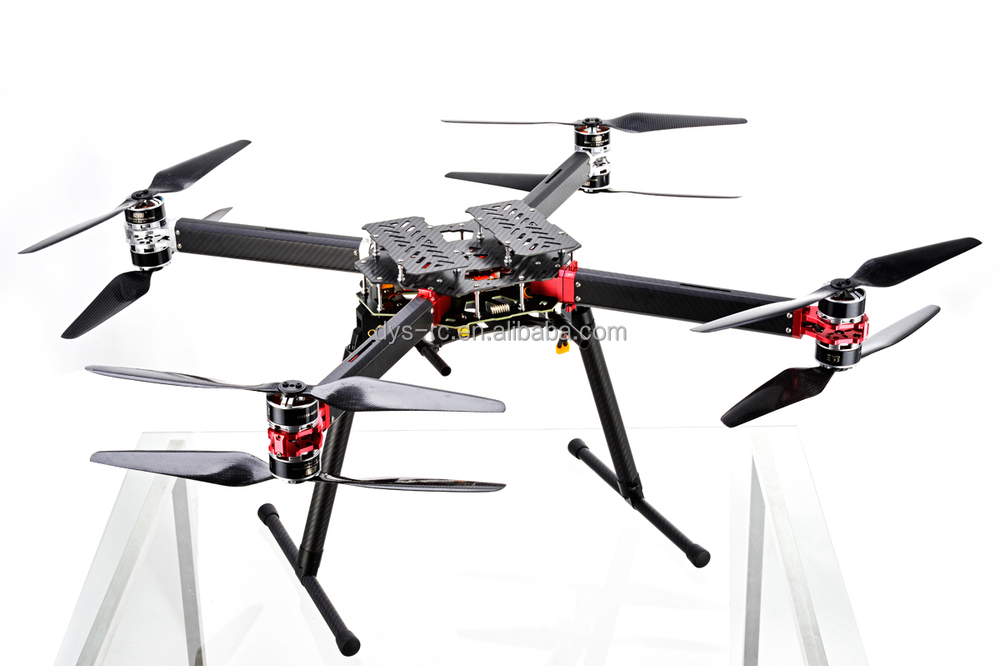

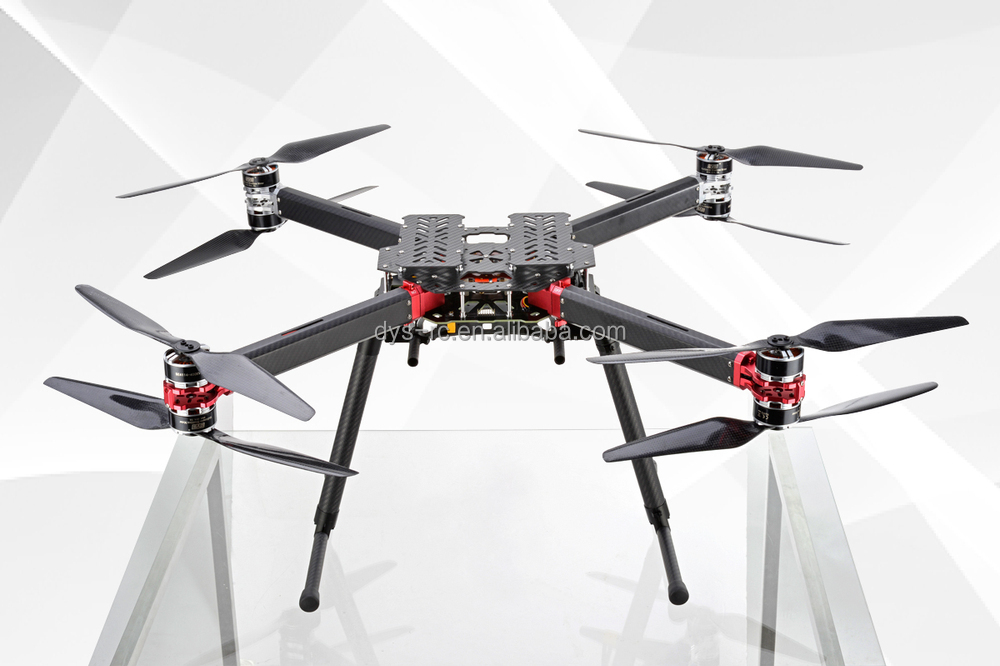

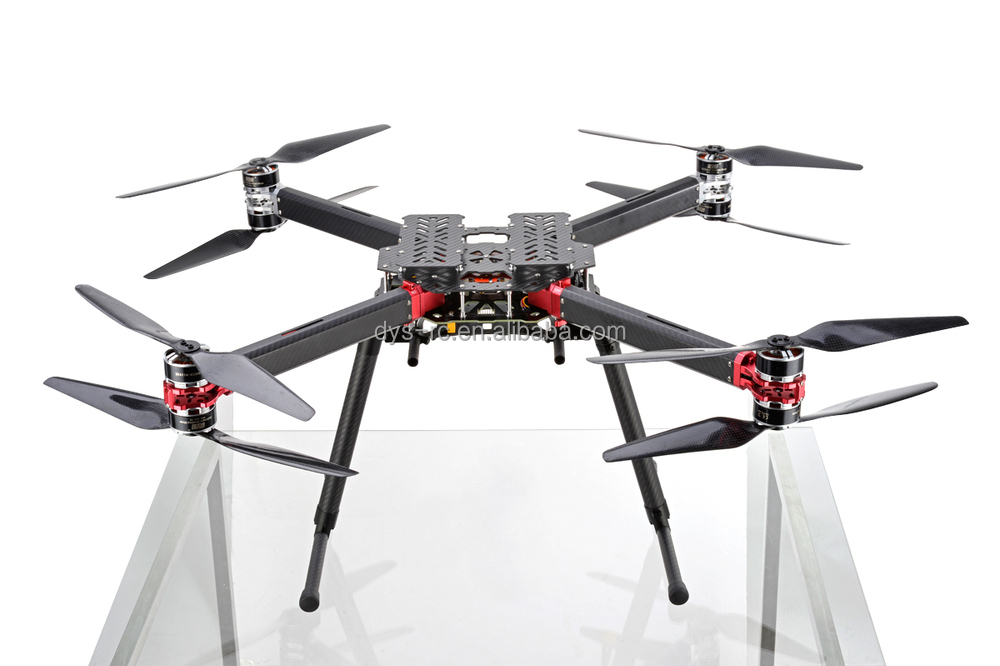

DYS Octocopter D800-X8 with Retractable Landing Gear for larger gimbal and cameras

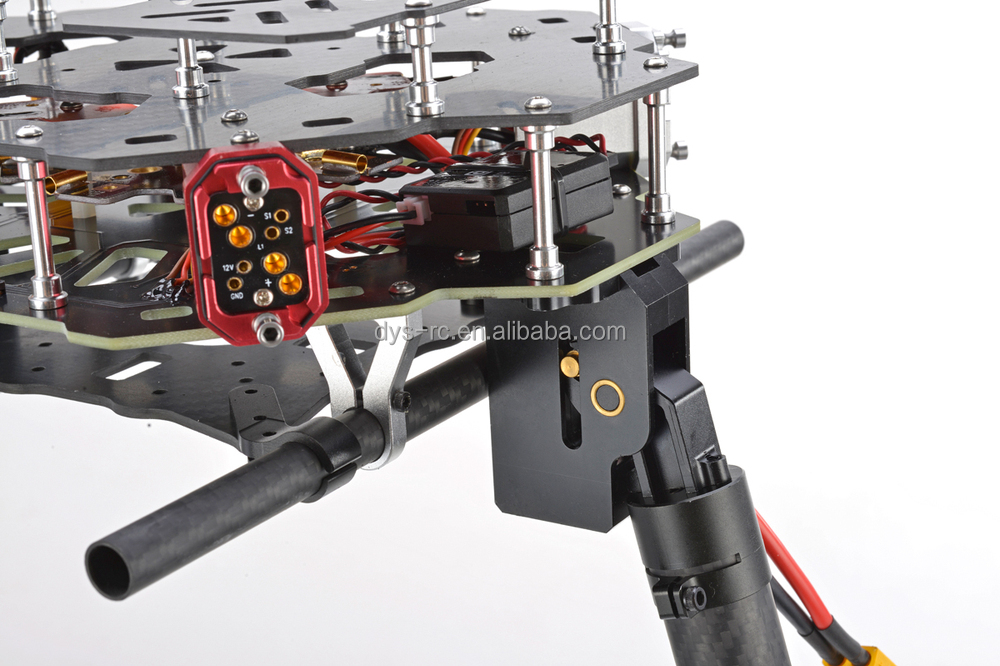

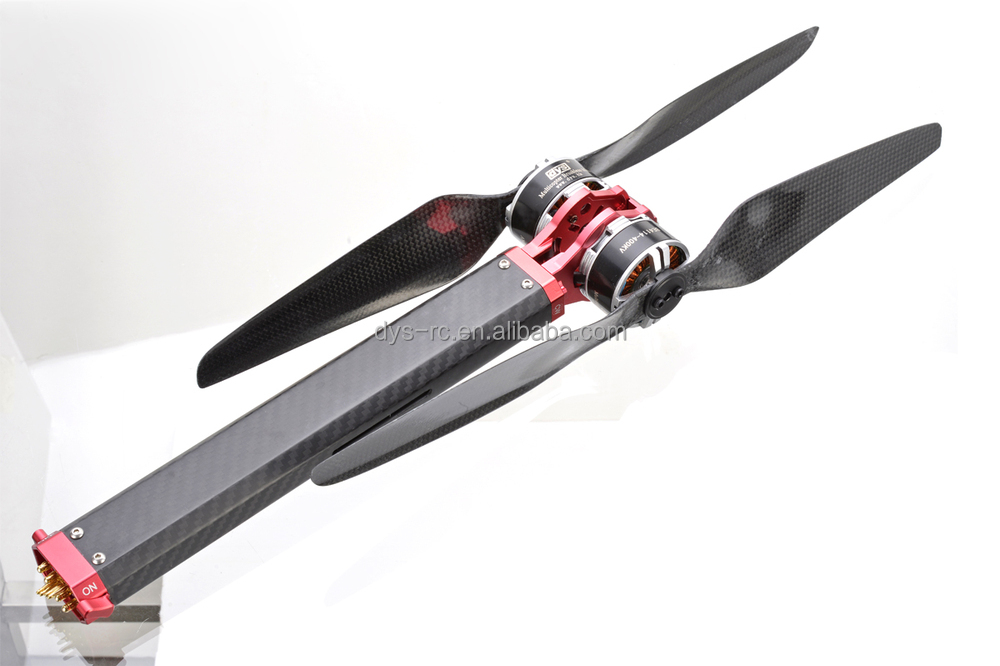

Quick disconnect and retractable landing gear design enables fast easy assembly and breakdown.



Note: One set includes motors, ECSs, propellers, power distribution board and retractable landing gear)



Flight video for your review also:  https://www.youtube.com/watch?v=xE1U2TlmNRo&feature=youtu.be



Specification:
Frame
Diagonal wheelbase
(800)mm
Arm length
(320)mm
Arm weight (including motors, ESCs, propellers)
(522)g
Center frame dimension
240mm(L)x185mm(W)x160(H)
Center frame weight(including landing gear and bracket)
1060g
Landing gear
470mm(L)×410mm(Bottom width)×430mm(H)(Top width:290 mm)

Motor
Stator size
(41)×(14)mm
KV
(400)rpm/V
Maximum Watt
(400)W

ESC
Working Current
(40)A
Working Voltage
(6)S LiPo
Compatible Signal Frequency
30Hz ~ 450Hz
Drive PWM
8KHz

Propeller(1555CW/1555CCW)
Material
Carbon fiber
Size
15×5.5 inch

Flight Configuration
Take-off Weight
(4)Kg ~ (10)Kg
Total weight of whole frame
(3.7)Kg
Battery
LiPo(6S,10000mAh~20000mAh,minimum 15C)
Maximum Power
(3000)W
Hovering Watt
(1500)W ( @ (6.7)Kg )
Hovering Time
(18)min(@(20000)mAh & (6.7)Kg)
Operating temperature
-10 °C ~ +40 °C


Feature:
Arms clearly marked CW &CCW
Mounting brackets and stabilizer
Secured connections for motors and ESCs
Quick disconnect design
Pre-assembled main body
PCB with connectors and lock arm joiners
Built-in power distribution board
Retractable landing gear
